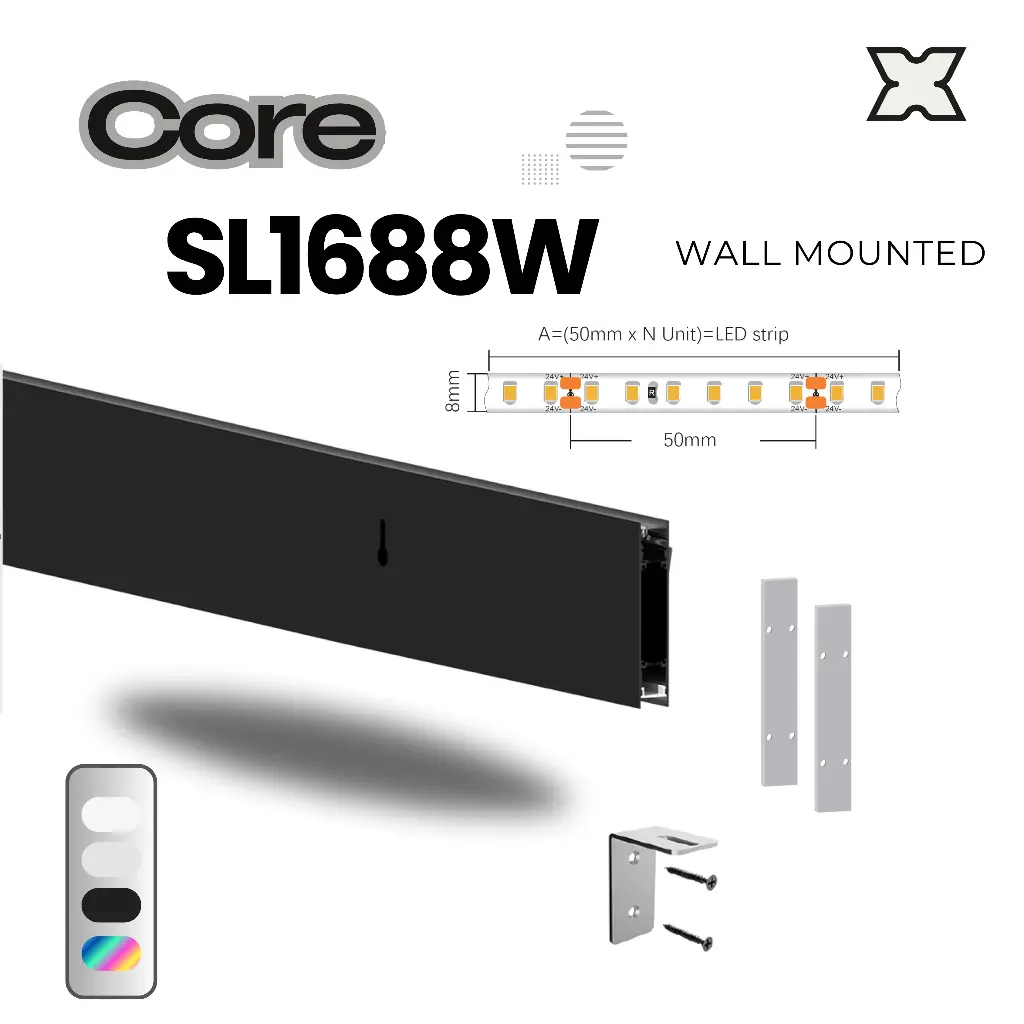

Core CombiLight SL1688W Wall
CombiLight SL0809S is a ready-to-use linear light—aluminum profile plus LED strip, made as a finished product.
- Installation: Surface mounting, Recessed.
- Price Series: Core Series is perfect balance of quality and value.
- Dimensions: This profile has an outer width of 88mm (3 15/32 inch), height of 16mm (5/8 inch), perfectly fitting LED strips up to 8mm (5/16 inch) wide.
- Compatible LED strip: Equipped with 24V SMD2835 LED strip (120 LEDs/m, 4.4W/ft, model SMD120SC8BL) 8mm width. Also compatible with any LED strip ≥120 LEDs/m for uniform, dot-free illumination.
- Alternative Replaceable LED Strips
- Option 1: SMD140SC8BL-140 LEDs/m
- Delivery Lumen: 60%–70% of the LED strip’s nominal lumen output after installation.
- Customization: We offer custom lengths and shapes (including special angles) with no minimum order required. For custom colors, a minimum order quantity applies—please contact our team for details.
- Certified: cULus Listed
- Warranty: 5 Years
Documents
30-day money-back guarantee
Core, Wall Mounted
Total Lead Time:
Express: 2–4 weeks
Standard: 6–10 weeks
Breakdown:
Lead time includes production (1–2 weeks) and shipping—choose Express/Air (1–2 weeks) or Standard/Ocean (4–8 weeks).
Free sea shipping (4–8 weeks) for orders over CAD $5,000; no minimum order quantity; shape, LED strip, and finish color can be customized (MOQ may apply—contact SuppLux for details).
Core—The perfect balance of quality and value.
Details
1. Profile (Aluminum Channel) Info
| Item | Description |
|---|---|
Name | SL1688W |
| Mounting | Recessed / Surface mount |

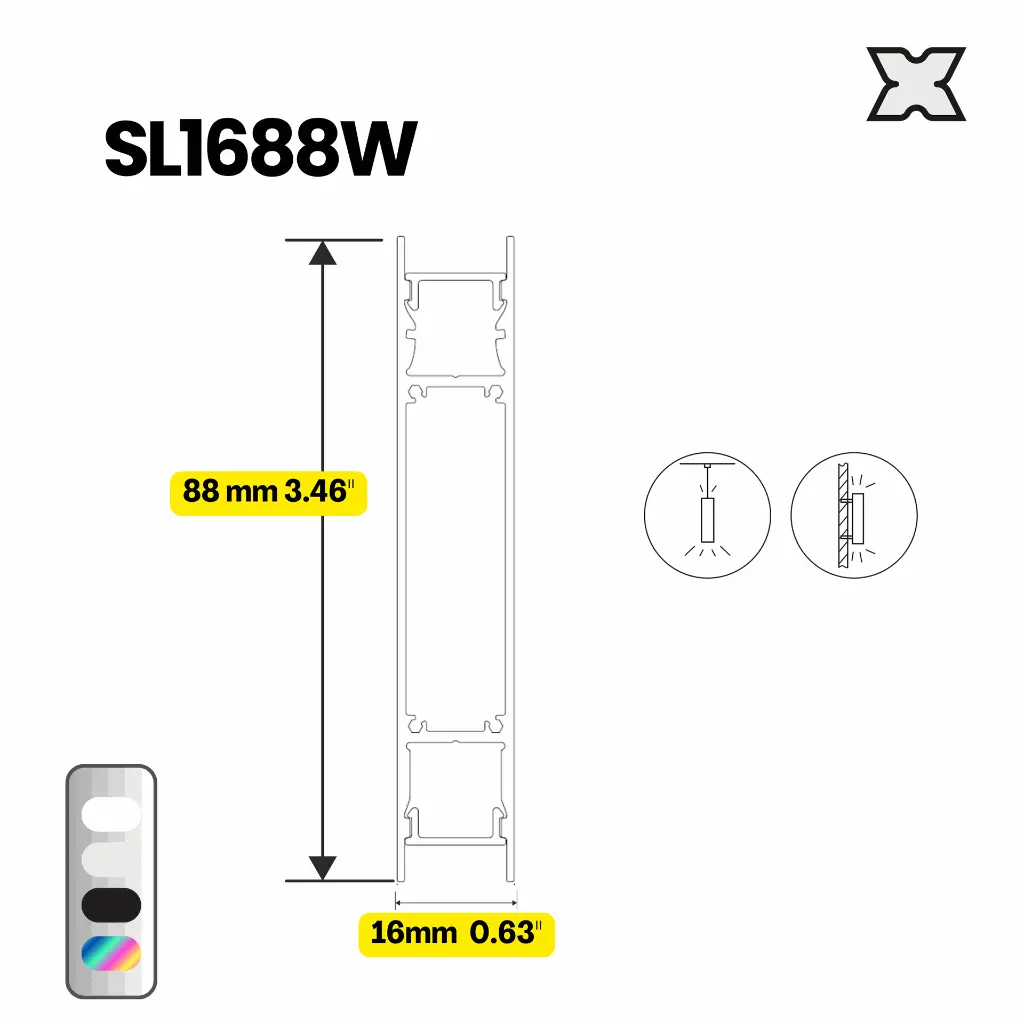

Dimension | 16mm (5/8 inch) outer width × 88mm (3 15/32 inch) height |
| Max Profile Length | 8ft per segment (linkable) |
| Inner Width | fits LED strips up to 8mm (5/16 inch) wide. |
| Available IP Grades | IP20 / IP65 |
2. LED Strip Info
| Item | Description |
|---|---|
| LED Strip Model | SMD120SC8BL |
| Voltage | DC 24V/12V |
| Power | 14.4W/m (4.4W/ft) |
| Current | 0.6A/m (0.183A/ft) |
| CRI | 85+/90+ |
| LED Density | 120 LEDs/m |
| Beam Angle | 120° |
| Strip Width | 8mm (5/16 inch) |
| Minimum Cut Length | 24V: 50mm (1 31/32 inch); 12V: 25mm (1 inch) |
| LED Pitch | 8.33mm (5/16 inch) |
| Max Strip Length | 5,000mm (16.4ft) |
CRI 85+ 120 LEDs/m Estimated Delivered Lumens (After Installation, 60–70% of Nominal Values)
All values are estimated only and have not been lab tested.
| CCT | Nominal Lumen/m | Estimated Delivered Lumen/m (60–70%) | Nominal Lumen/ft | Estimated Delivered Lumen/ft (60–70%) |
|---|---|---|---|---|
| 2700K | 1393 | 836–975 | 425 | 255–298 |
| 3000K | 1464 | 878–1025 | 446 | 268–312 |
| 3500K | 1489 | 893–1042 | 454 | 272–318 |
| 4000K | 1550 | 930–1085 | 472 | 283–330 |
| 5000K | 1515 | 909–1061 | 462 | 277–323 |
| 6000K | 1539 | 923–1077 | 469 | 281–328 |
CRI 90+ 120 LEDs/m Estimated Delivered Lumens (After Installation, 60–70% of Nominal Values)
All values are estimated only and have not been lab tested.
| CCT | Nominal Lumen/m | Estimated Delivered Lumen/m (60–70%) | Nominal Lumen/ft | Estimated Delivered Lumen/ft (60–70%) |
|---|---|---|---|---|
| 2700K | 1202 | 721–841 | 366 | 220–256 |
| 3000K | 1244 | 746–871 | 379 | 227–265 |
| 3500K | 1304 | 782–913 | 397 | 238–278 |
| 4000K | 1382 | 829–967 | 421 | 253–295 |
| 5000K | 1356 | 814–949 | 412 | 247–288 |
| 6000K | 1299 | 779–909 | 396 | 238–277 |
3. Accessories
| Item | Description |
|---|---|
| Wiring | 20AWG red/black lead wires |
| Other Accessories | Mounting clips, end caps, etc. |
4. Overall (Assembled Product)
| Item | Description |
|---|---|
| Delivery Lumen Rate | Approx. 60–70% of raw LED strip lumen |
| Available IP Grades | IP20 / IP65 |
Alternative Replaceable LED Strips
Option 1: SMD140SC8BL
140 LEDs/m Estimated Delivered Lumens (After Installation, 60–70% of Nominal Values)
All values are estimated only and have not been lab tested.
| CCT | Nominal Lumen/m | Estimated Delivered Lumen/m (60–70%) | Nominal Lumen/ft | Estimated Delivered Lumen/ft (60–70%) |
|---|---|---|---|---|
| 2700K | 1626 | 976–1138 | 496 | 298–347 |
| 3000K | 1708 | 1025–1196 | 520 | 312–364 |
| 3500K | 1721 | 1032–1205 | 525 | 315–368 |
| 4000K | 1808 | 1085–1266 | 551 | 331–386 |
| 5000K | 1774 | 1064–1242 | 541 | 324–378 |
| 6000K | 1795 | 1077–1257 | 547 | 328–383 |
Accessories (Included)
Name | Image | Description |
SL0809-Profile |  | 1 pc frosted diffuser 1 pc aluminum channel |
SL0809S-End Caps |  | 2 pcs per bar |
SL0809S-Mounting Clips |  | 2 pcs per 4ft |
SMD120SC5BL or SMD140SC5BL/ SMD160SC5BL |  | 1 pc |
Application Scenarios
Perfect for cabinets, shelves, showcases, cove lighting, retail displays, and modern residential interiors.
SL1688W Wall Mounted Spec Sheet
