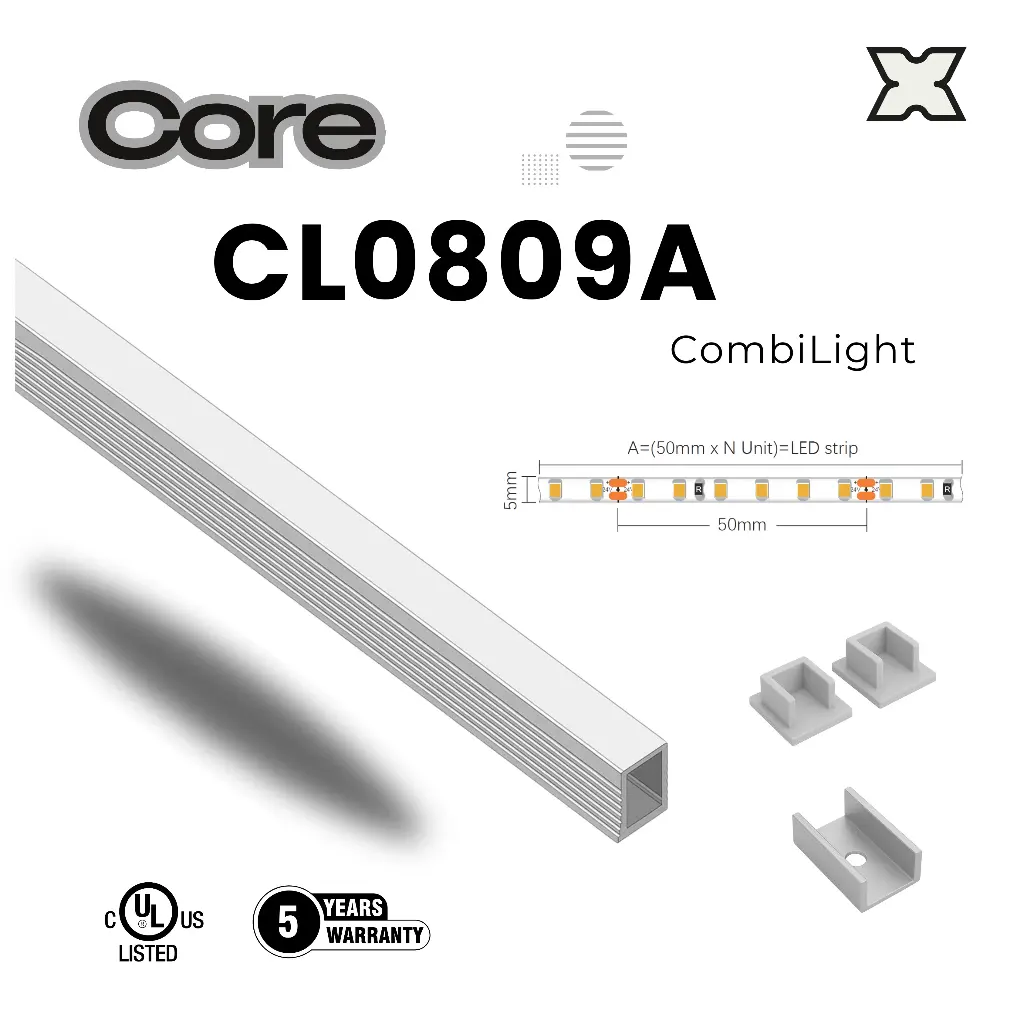

Core CombiLight CL0809A
CombiLight CL0809A is a ready-to-use linear light—aluminum profile plus LED strip, made as a finished product.
Installation: Surface mounting, Recessed.
Price Series: Core Series is perfect balance of quality and value.

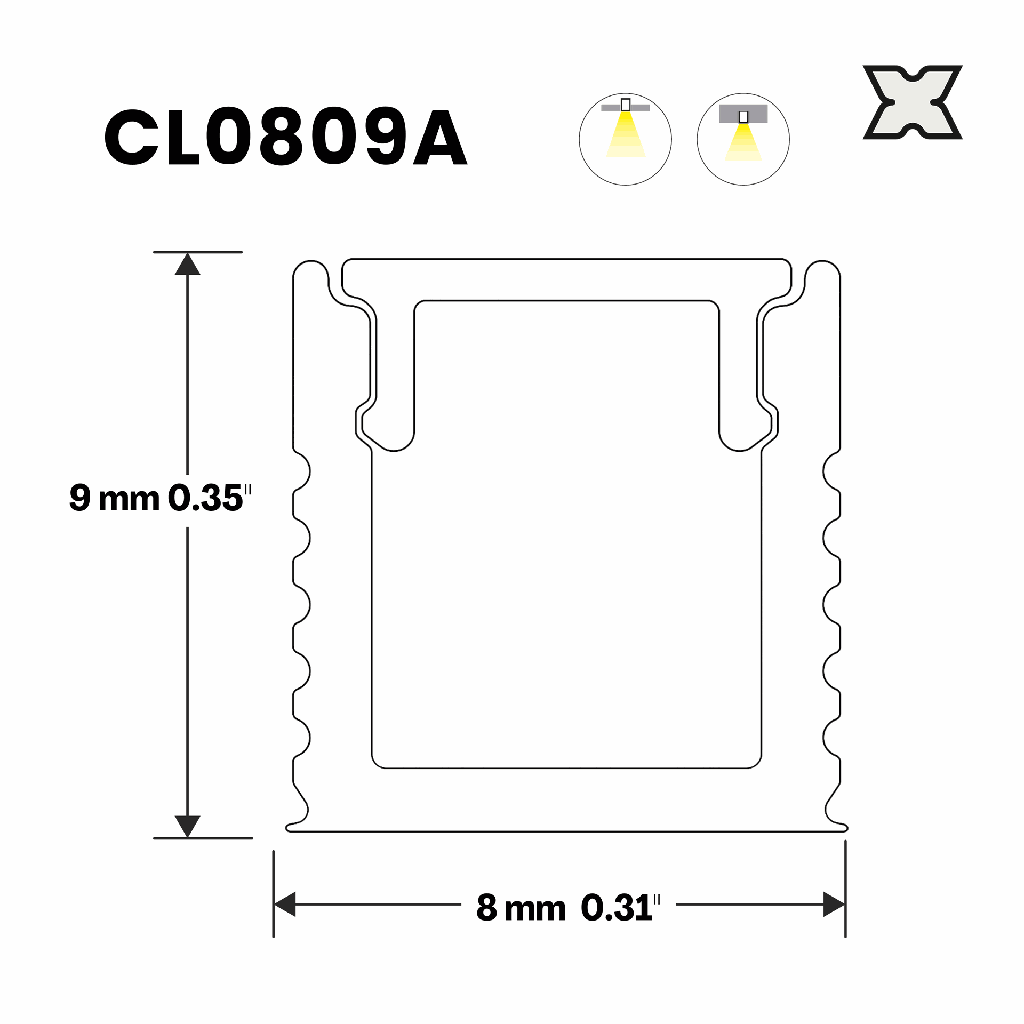

Dimensions: This profile has an outer width of 8mm (5/16 inch), height of 9mm (3/8 inch), and an internal width of 5.5mm (7/32 inch), perfectly fitting LED strips up to 5mm (13/64 inch) wide.
Compatible LED strip: Equipped with 24V SMD2835 LED strip (120 LEDs/m, 4.4W/ft, model SMD120SC5BL) 5mm width. Also compatible with any LED strip ≥120 LEDs/m for uniform, dot-free illumination.
Alternative Replaceable LED Strips
Option 1: SMD140SC5BL-140 LEDs/m
Option 2: SMD160SC5BL-160 LEDs/m
Delivery Lumen: 60%–70% of the LED strip’s nominal lumen output after installation.
Customization: We offer custom lengths and shapes (including special angles) with no minimum order required. For custom colors, a minimum order quantity applies—please contact our team for details.
Certified: cULus Listed
Warranty: 5 Years
Application: For offices/conference rooms / supermarkets/home lighting application.
Documents
30-day money-back guarantee
Core, Surface Mounted, Recessed
Total Lead Time:
Express: 2–4 weeks
Standard: 6–10 weeks
Breakdown:
Lead time includes production (1–2 weeks) and shipping—choose Express/Air (1–2 weeks) or Standard/Ocean (4–8 weeks).
Free sea shipping (4–8 weeks) for orders over CAD $3,000; no minimum order quantity; shape, LED strip, and finish color can be customized (MOQ may apply—contact SuppLux for details).
Core—The perfect balance of quality and value.
Details
1. Profile (Aluminum Channel) Info
| Item | Description |
|---|---|
Name | SL0809S |
| Mounting | Recessed / Surface mount |
Dimension | 8mm (5/16 inch) outer width × 9mm (3/8 inch) height |
| Max Profile Length | 8ft per segment (linkable) |
| Inner Width | 5.5mm (fits ≤5mm strips); fits LED strips up to 5mm (13/64 inch) wide. |
| Available IP Grades | IP20 / IP65 |
2. LED Strip Info
| Item | Description |
|---|---|
| LED Strip Model | SMD120SC5BL |
| Voltage | DC 24V |
| Power | 14.4W/m (4.4W/ft) |
| Current | 0.6A/m (0.183A/ft) |
| CRI | 90+ |
| LED Density | 120 LEDs/m |
| Beam Angle | 120° |
| Strip Width | 5mm (13/64 inch) |
| Minimum Cut Length | 50mm (1 31/32 inch) |
| LED Pitch | 8.33mm (5/16 inch) |
| Max Strip Length | 5,000mm (16.4ft) |
120 LEDs/m Estimated Delivered Lumens (After Installation, 60–70% of Nominal Values)
All values are estimated only and have not been lab tested.
| CCT | Nominal Lumen/m | Estimated Delivered Lumen/m (60–70%) | Nominal Lumen/ft | Estimated Delivered Lumen/ft (60–70%) |
|---|---|---|---|---|
| 2700K | 1190 | 714–833 | 363 | 218–254 |
| 3000K | 1223 | 734–856 | 373 | 224–261 |
| 3500K | 1244 | 746–871 | 379 | 227–265 |
| 4000K | 1383 | 830–968 | 422 | 253–295 |
| 5000K | 1352 | 811–946 | 412 | 247–288 |
| 6000K | 1299 | 779–909 | 396 | 238–277 |
3. Accessories
| Item | Description |
|---|---|
| Wiring | 22AWG red/black lead wires |
| Other Accessories | Mounting clips, end caps, etc. |
4. Overall (Assembled Product)
| Item | Description |
|---|---|
| Delivery Lumen Rate | Approx. 60–70% of raw LED strip lumen |
| Available IP Grades | IP20 / IP65 |
Alternative Replaceable LED Strips
Option 1: SMD140SC5BL
140 LEDs/m Estimated Delivered Lumens (After Installation, 60–70% of Nominal Values)
All values are estimated only and have not been lab tested.
| CCT | Nominal Lumen/m | Estimated Delivered Lumen/m (60–70%) | Nominal Lumen/ft | Estimated Delivered Lumen/ft (60–70%) |
|---|---|---|---|---|
| 2700K | 1626 | 976–1138 | 496 | 298–347 |
| 3000K | 1708 | 1025–1196 | 520 | 312–364 |
| 3500K | 1721 | 1032–1205 | 525 | 315–368 |
| 4000K | 1808 | 1085–1266 | 551 | 331–386 |
| 5000K | 1774 | 1064–1242 | 541 | 324–378 |
| 6000K | 1795 | 1077–1257 | 547 | 328–383 |
Option 2: SMD160SC5BL
160 LEDs/m Estimated Delivered Lumens (After Installation, 60–70% of Nominal Values)
All values are estimated only and have not been lab tested.
| CCT | Nominal Lumen/m | Estimated Delivered Lumen/m (60–70%) | Nominal Lumen/ft | Estimated Delivered Lumen/ft (60–70%) |
|---|---|---|---|---|
| 2700K | 1858 | 1115–1301 | 566 | 340–396 |
| 3000K | 1951 | 1171–1366 | 595 | 357–417 |
| 3500K | 1971 | 1183–1380 | 601 | 361–421 |
| 4000K | 2066 | 1240–1446 | 630 | 378–441 |
| 5000K | 2033 | 1220–1423 | 620 | 372–434 |
| 6000K | 2051 | 1231–1436 | 625 | 375–438 |
Accessories (Included)
Name | Image | Description |

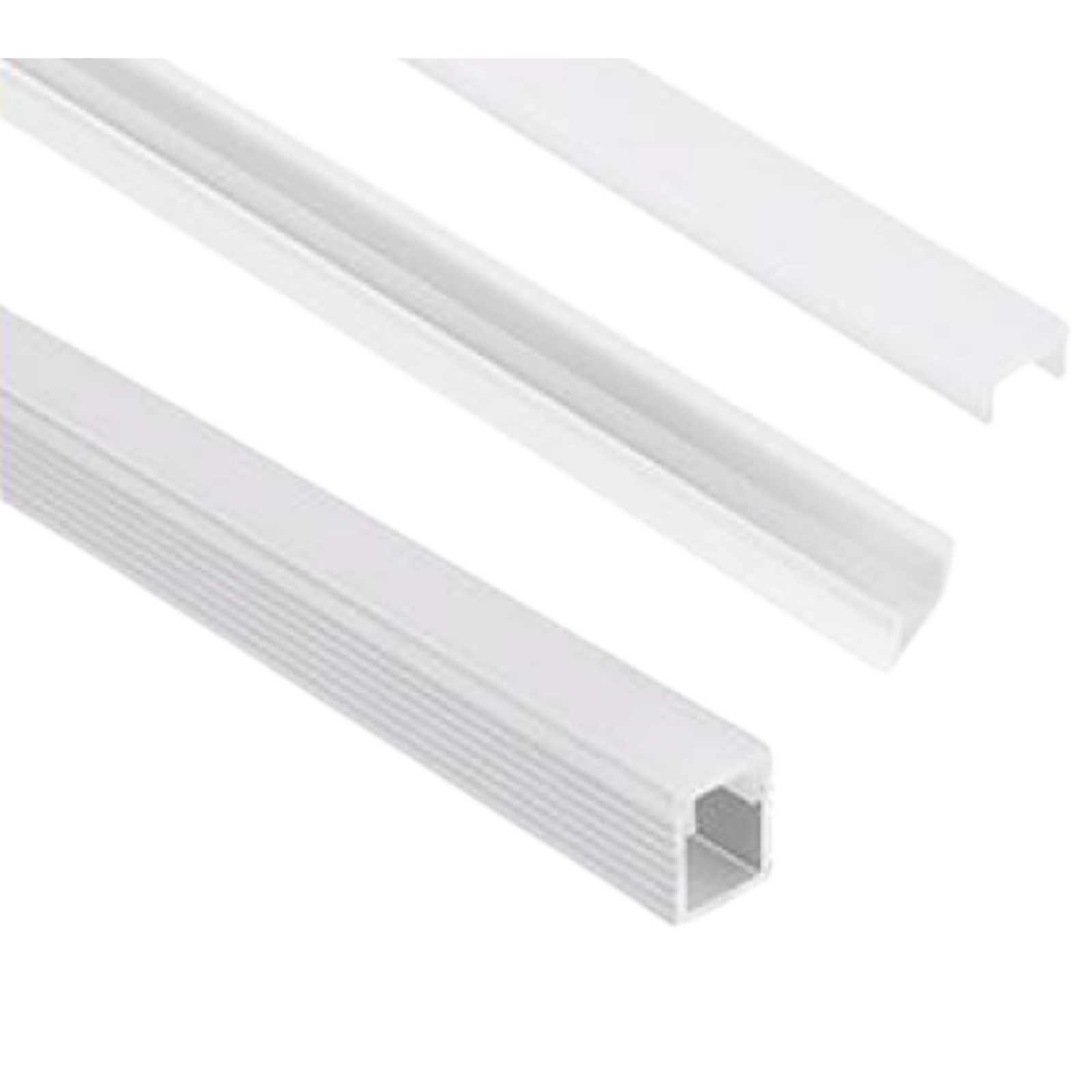

SL0809-Profile |  | 1 pc frosted diffuser 1 pc aluminum channel |

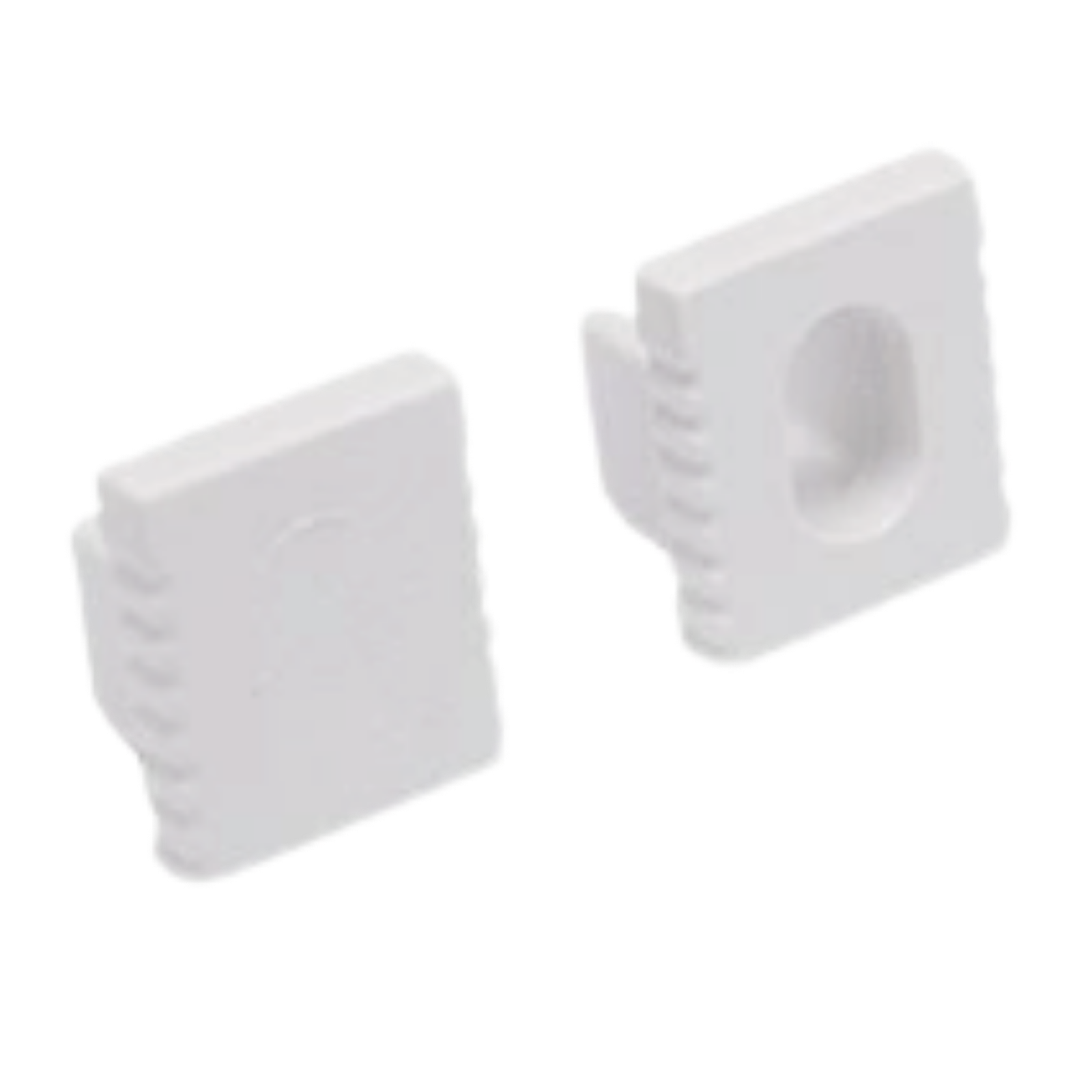

SL0809S-End Caps |  | 2 pcs per bar |

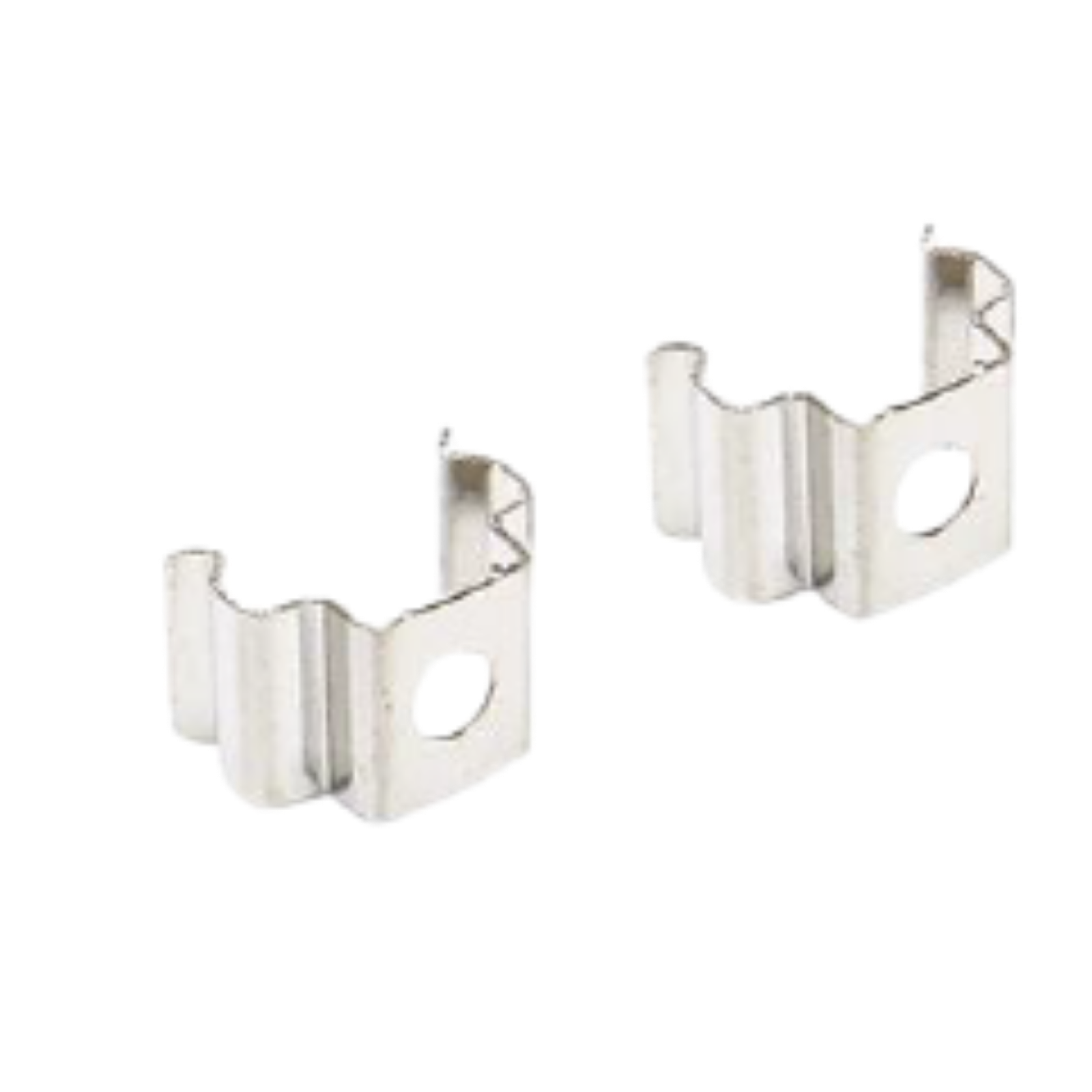

SL0809S-Mounting Clips |  | 2 pcs per 4ft |
SMD120SC5BL or SMD140SC5BL/ SMD160SC5BL |  | 1 pc |

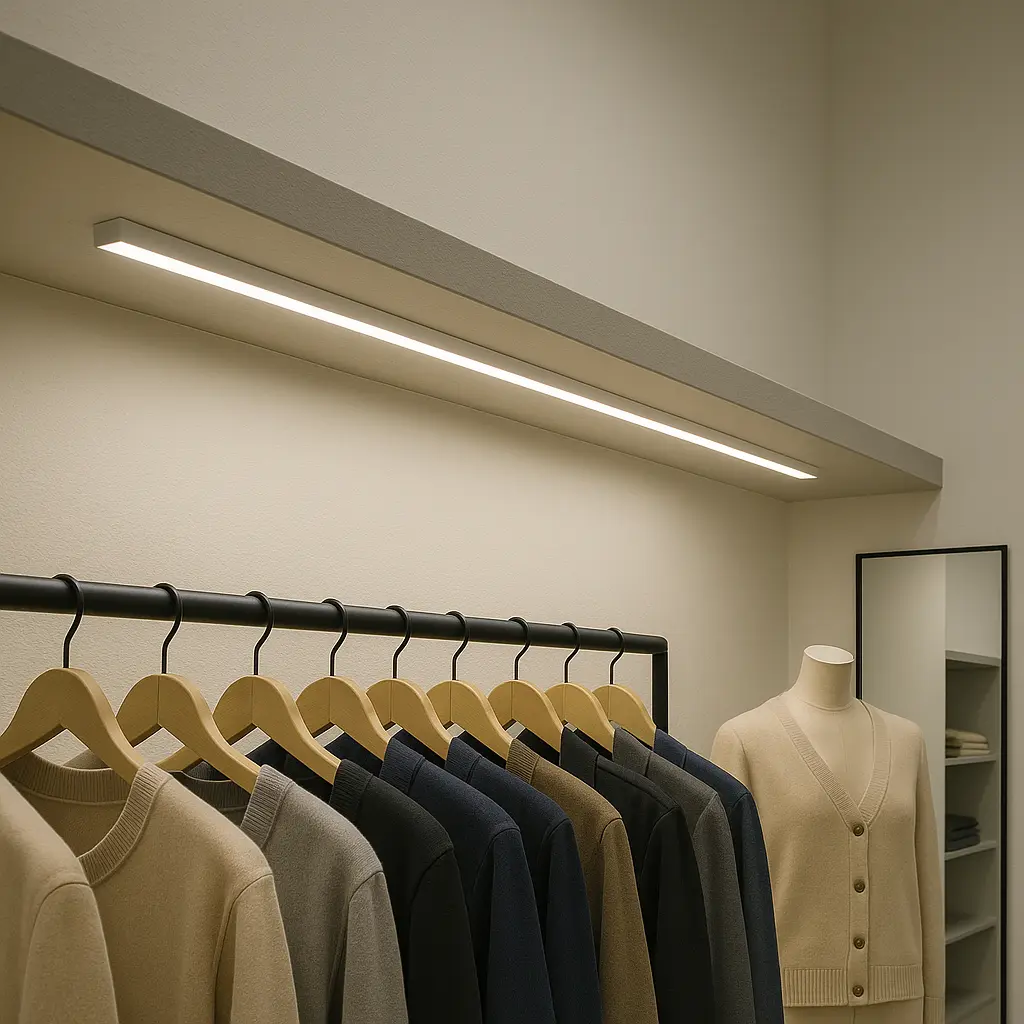

Application Scenarios
Perfect for cabinets, shelves, showcases, cove lighting, retail displays, and modern residential interiors.
