SL-DTD SERIES
-
Lead Time Our standard production lead time is around 1–10 weeks. The delivery time depends on your chosen shipping method!
Detail
30-day money-back guaranteeSLuxDrive™ DimTone

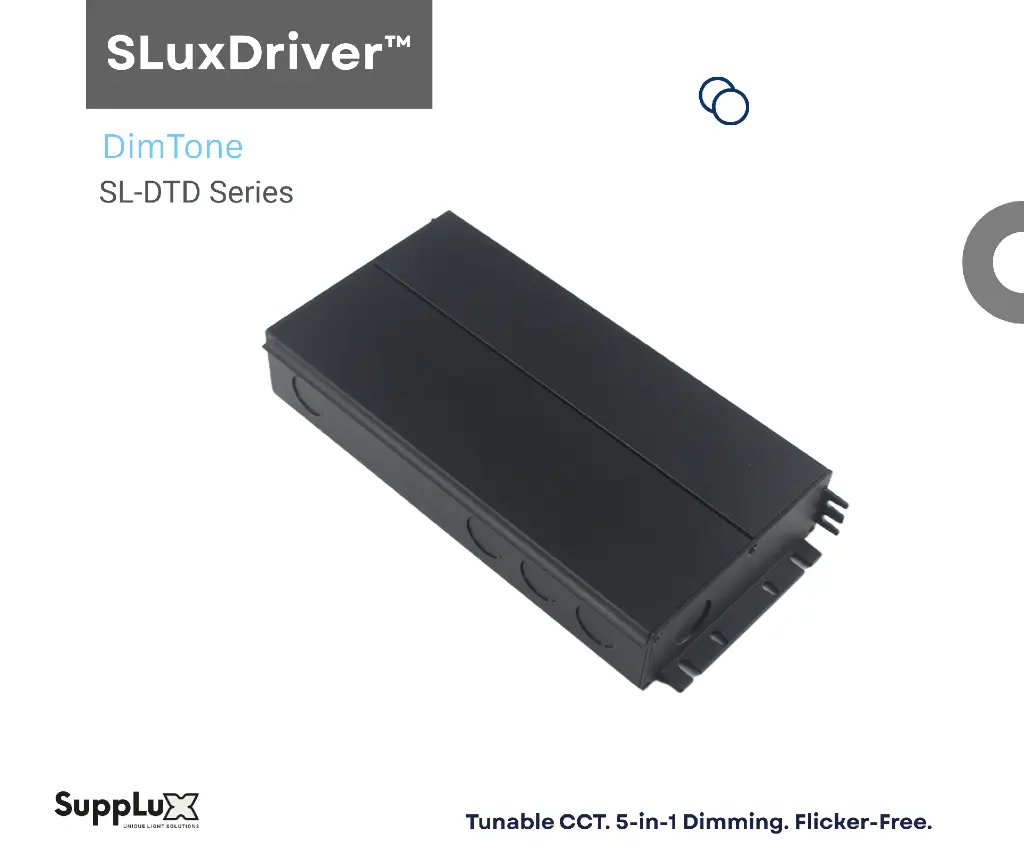

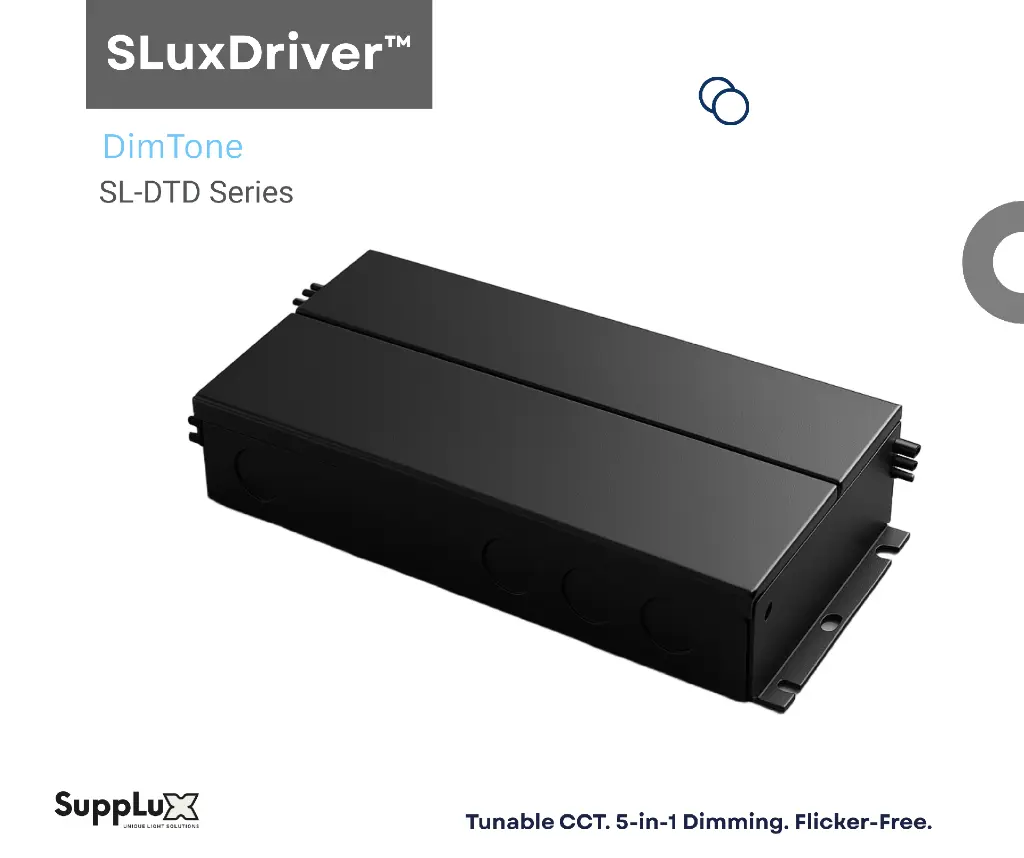

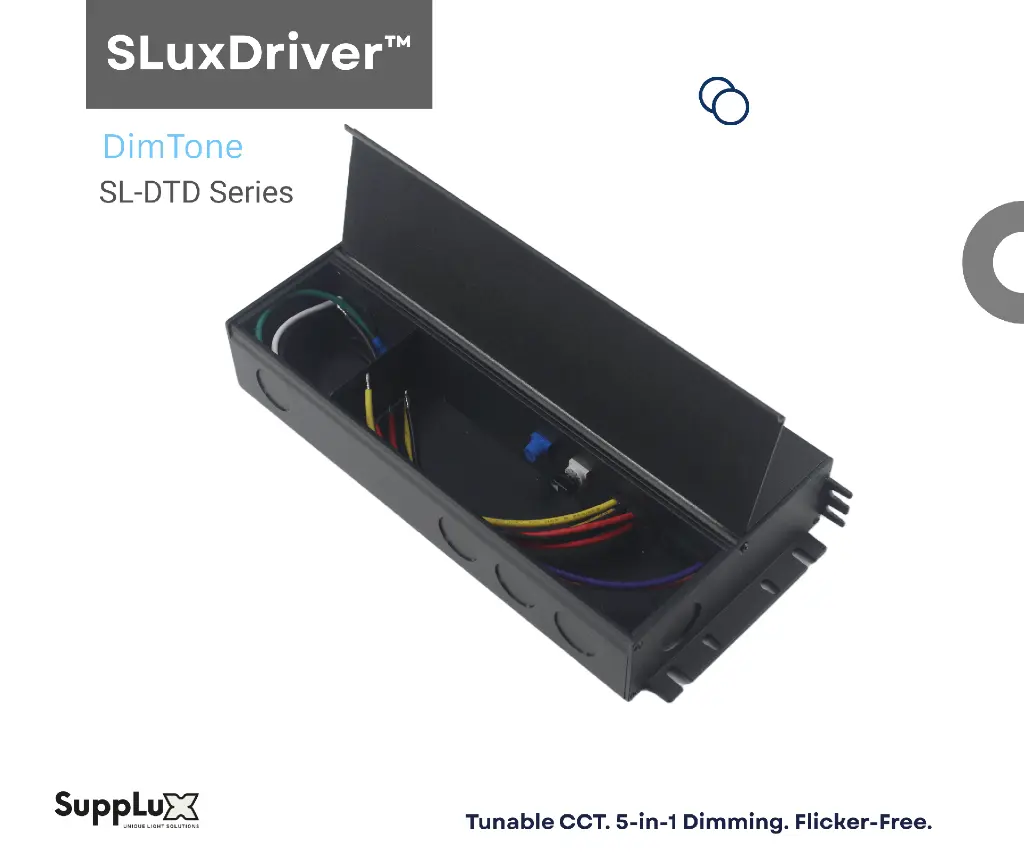

The SLuxDrive™ DimTone Series is a high-performance line of LED drivers designed for tunable white lighting applications. Featuring dual-channel output, full-range CCT adjustability, and broad dimming compatibility, DimTone drivers provide a professional-grade solution for precise light control.
Key Features:
Dual-Channel Architecture
Enables independent control of two output channels—ideal for CW+WW tunable white lighting systems.CCT Adjustable (2700K–6500K)
Offers both stepped and linear color temperature tuning via wall switch or dimmer.5-in-1 Dimming Compatibility
Supports TRIAC, ELV, MLV, 0-10V, and 1-10V dimming protocols for maximum system flexibility.Switch-Based CCT Tuning

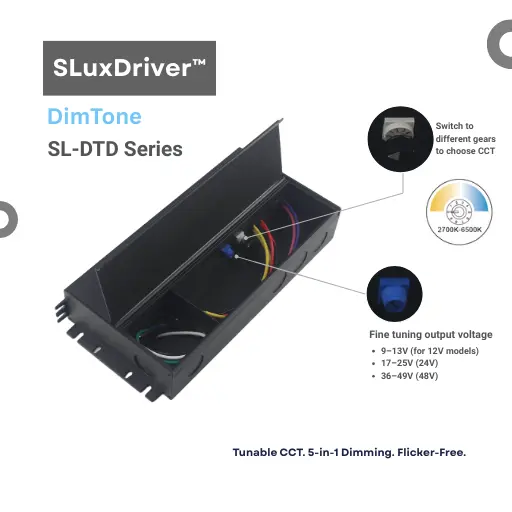

No controller needed—easily switch color temperature presets using a standard wall switch.Fine Output Voltage Tuning
Allows subtle brightness adjustment or voltage compensation without the need for a dimmer.High-Frequency PWM Output
Delivers flicker-free lighting at 4000Hz (customizable up to 20kHz), ideal for sensitive environments and camera use.Robust Safety & Certifications
Built-in protections for short-circuit, overload, and over-temperature. Certified to UL8750, CSA C22.2 No.250.13, Class P, Class 2, and Title 24 / JA8 standards. Rated for dry, damp, and wet locations.
SL-DTD-100W-S
SL-DTD-120W-S
SL-DTD-150W-S
SL-DTD-200W-S
SL-DTD-300W-S
SL-DTD-30W
SL-DTD-60W
SL-DTD-80W
SL-DTD-96W
SL-DTD-120W (60Wx2)
SL-DTD-180W (60Wx3)
SL-DTD-192W (96Wx2)
SL-DTD-288W (96Wx3)
SL-DTD-384W (96Wx4)
