Core Classic Neon N1313
N1313 is a neon LED strip light. This model supports three bending styles: 360° free bend.
- Price Series: Core Series is perfect balance of quality and value.
- Dimensions: a width of 25/64" ± 1/128" (10mm ± 0.2mm) and a height of 25/64" ± 1/128" (10mm ± 0.2mm); length of 197-7/8" (5020mm)
- Key Features:
Size: L5020 × W13 × H13 MM (L16.47 × W0.04 × H0.04 FT)
Power: 7.2 W/M (2.20 W/FT)
Voltage: DC 24V
Minimum Cutting Length: 50 MM
CRI Options: 85+ and 90+
CCT Options: 2700K, 3000K, 4000K, 6000K
CRI 85+: 439–488 LM/M (134–149 LM/FT)
CRI 90+: 373–415 LM/M (114–127 LM/FT)
Luminous Flux:
Light Transmittance: 53%
IP Grade: IP67
Beam Angle: 112°
- Customization: The wattage can be customized, but a minimum order quantity (MOQ) is required.
- Certified: cULus Listed
- Warranty: 5 Years
Documents
30-day money-back guarantee
Total Lead Time:
Express: 2–4 weeks
Standard: 6–10 weeks
Breakdown:
Lead time includes production (1–2 weeks) and shipping—choose Express/Air (1–2 weeks) or Standard/Ocean (4–8 weeks).
Free shipping for orders over CAD $5,000 (including $5,000).
For shipments under 800kg: Express Air Shipping (1–2 weeks)
For shipments over 800kg: Sea Shipping (5–8 weeks)
Product Specification
| Item | Description |
|---|---|
Power(W/m) | 7.2W/M (2.2W/FT) |
Cutting Length | 50mm |
| Voltage(V) | DC24V |
Ambient Temperature | -25°C~+45°C |
| Storage Temperature | -25°C~+60°C |
| Max.run length(M) | 5020 mm |
360° Bendable Neon
| CCT | Lumen/meter (LM/M) | Lumen/foot (LM/FT) | CRI |
|---|---|---|---|
 | 439 | 134 | 85+ |
 | 461 | 141 | 85+ |
 | 488 | 149 | 85+ |
 | 485 | 148 | 85+ |
| 373 | 114 | 90+ |
| 392 | 120 | 90+ |
| 415 | 127 | 90+ |
| 412 | 126 | 90+ |

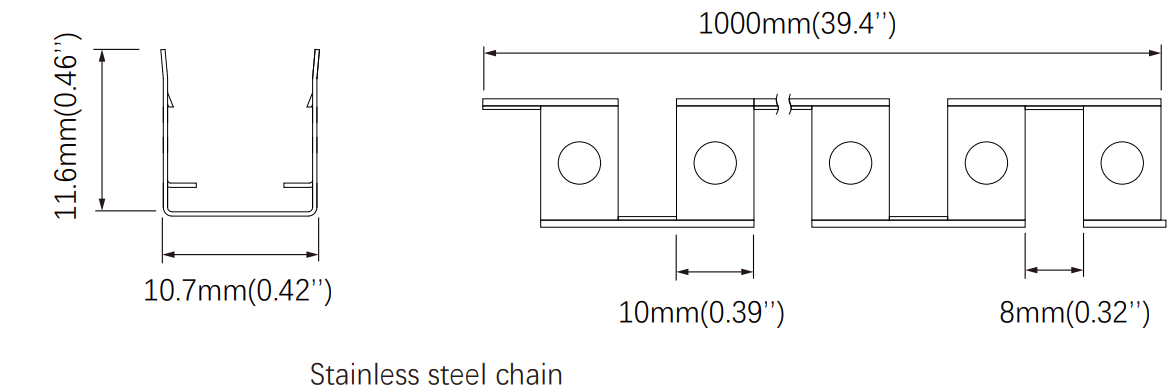

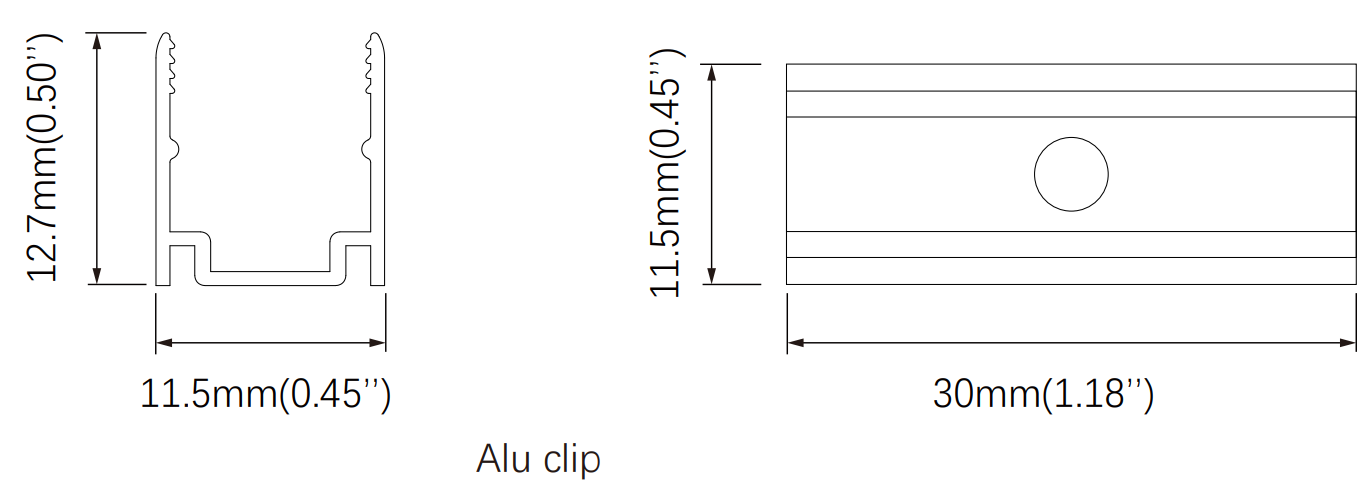

Accessories
Application Scenarios
Neon N1313 specification sheet
