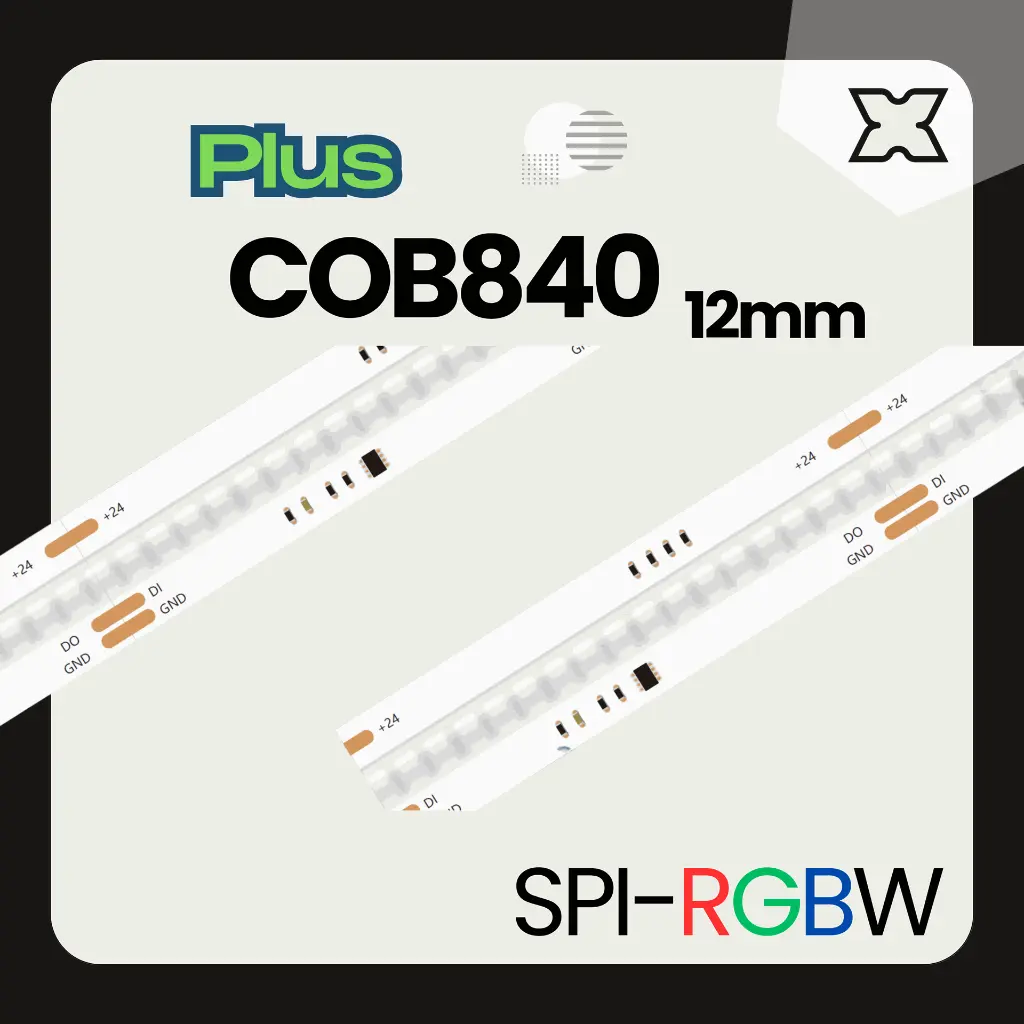

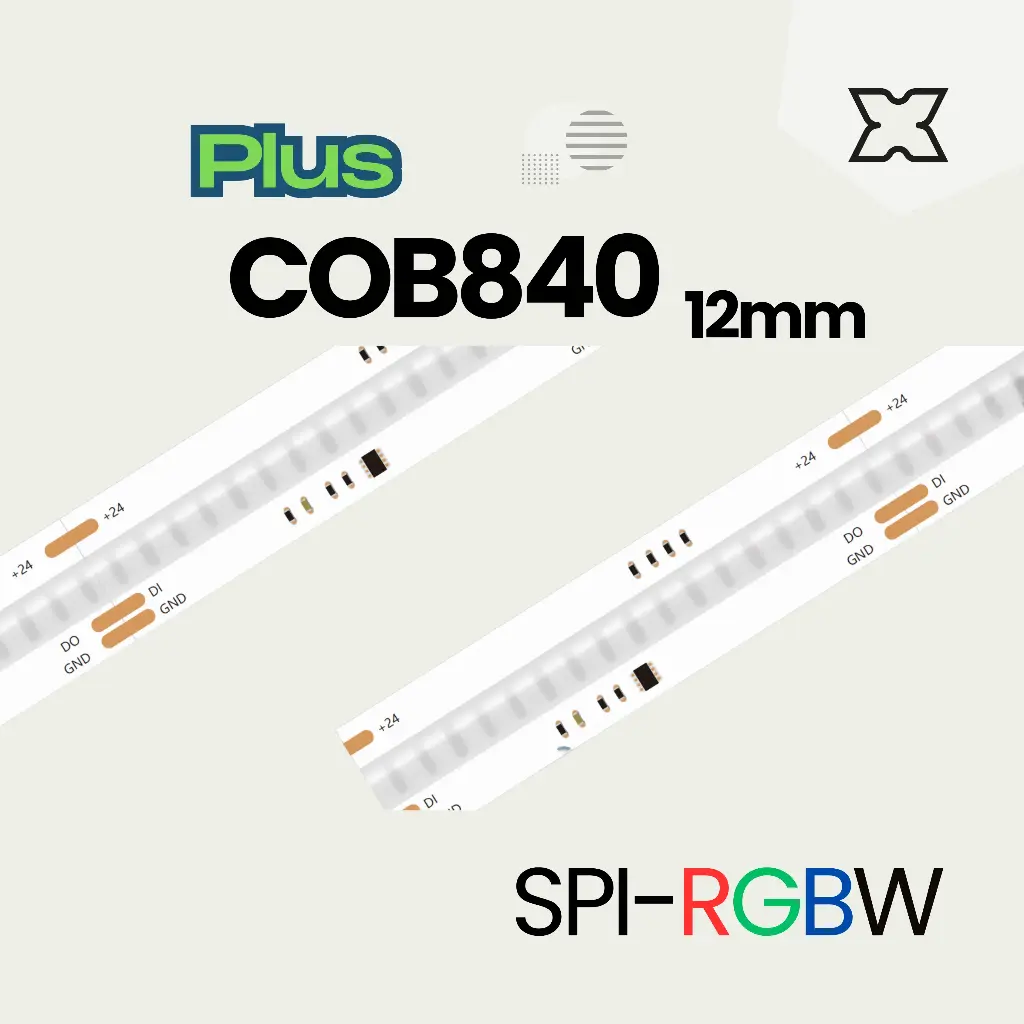

Plus SPI RGBW COB840SPIW12mm
COB LED strip is “Chip On Board” LED strip. It uses many tiny LED chips mounted closely together on the strip, creating a continuous, dot-free line of light with high brightness and smooth, uniform illumination.
- Price Series: Core Series is perfect balance of quality and value.
- Dimensions: This image shows a digital (addressable) LED strip that is 5000 mm (196 7/8 in) long and 12 mm (15/32 in) wide, with a 150 mm (5 7/8 in) wire lead and cuttable every 50 mm (2 in). The minimum bending radius is 10 mm (25/64 in). For different waterproof ratings:
IP20: 1.8 mm (5/64 in) thick × 12 mm (15/32 in) wide
IP66: 2.2 mm (7/64 in) thick × 12.2 mm (31/64 in) wide
IP67: 4 mm (5/32 in) thick × 14 mm (35/64 in) wide.
- Compatible Profile: It can be installed in any profile with an inner width of at least 12 mm (15/32 in).
- Customization: The wattage can be customized, but a minimum order quantity (MOQ) is required.
- Certified: cULus Listed
- Warranty: 5 Years
30-day money-back guarantee
Plus, Pixel
Total Lead Time:
Express: 2–4 weeks
Standard: 6–10 weeks
Breakdown:
Lead time includes production (1–2 weeks) and shipping—choose Express/Air (1–2 weeks) or Standard/Ocean (4–8 weeks).
Free sea shipping (4–8 weeks) for orders over CAD $5,000; no minimum order quantity; shape, LED strip, and finish color can be customized (MOQ may apply—contact SuppLux for details).
Core—The perfect balance of quality and value.
Details
Product Specification
| Item | Description |
|---|---|
Power(W/m) | 12W (3.66W/ft) |
| Voltage(V) | DC24V |
Ambient Temperature | -25°C~+45°C |
| Storage Temperature | -25°C~+60°C |
| Max.run length(M) | 5m |
Product Photometrics
| CCT | lm/m | lm/ft | w/m |
|---|---|---|---|
 | 82 | 24.99 | 4.8 |
 | 374 | 113.98 | 4.8 |
 | 43 | 13.11 | 4.8 |
 | 468 | 142.66 | 12 |
Accessories (Included)
Name | Image | Description |
4PIN Lead Wire (4ft) |  | Black: V+ (Positive Voltage) Red: R- (Red Channel Negative) Green: G- (Green Channel Negative) Blue: B- (Blue Channel Negative) |
Package |  | Bag and Roll |
Sticker |  | Stick-On |
Application Scenarios
Perfect for cabinets, shelves, showcases, cove lighting, retail displays, and modern residential interiors.
