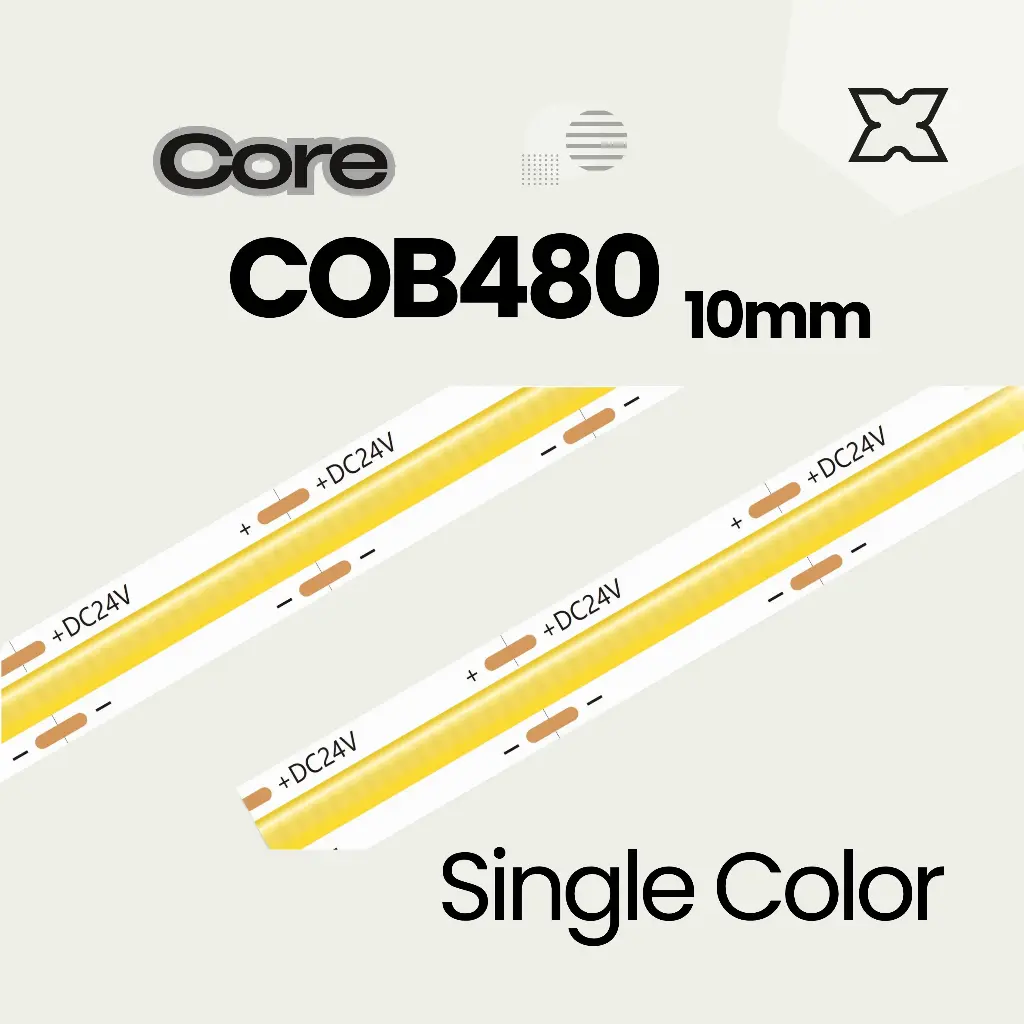

SL-COB480SW8
COB LED strip is “Chip On Board” LED strip. It uses many tiny LED chips mounted closely together on the strip, creating a continuous, dot-free line of light with high brightness and smooth, uniform illumination.
- Price Series: Core Series is perfect balance of quality and value.
- Dimensions: LED strip that is 5000 mm (196 7/8 in) long and 10 mm (25/64 in) wide, with a cuttable length of 50 mm (1 31/32 in) for DC24V versions, 25 mm (1 in) for DC12V, and 100 mm (3 15/16 in) for DC48V. The wire lead length is 150 mm (5 7/8 in). The minimum bending radius is 10 mm (25/64 in). For different waterproof grades, the thickness and width are: IP20 – 1.8 mm (5/64 in) thick and 10 mm (25/64 in) wide; IP65H – 2.2 mm (7/64 in) thick and 10.2 mm (13/32 in) wide; IP67 – 4 mm (5/32 in) thick and 12 mm (15/32 in) wide.
- Free Cut Version: LED strip that is 5000 mm (196 7/8 in) long and 8 mm (5/16 in) wide, with a wire lead length of 150 mm (5 7/8 in). The minimum bending radius is 10 mm (25/64 in). The standard IP20 version is 1.8 mm (5/64 in) thick and available in 8 mm or 10 mm widths. The IP66 version is 2.2 mm (7/64 in) thick and 8.2 mm or 10.2 mm wide, while the IP67 version is 4 mm (5/32 in) thick and 10 mm or 12 mm wide.
- Compatible Profile: It can be installed in any profile with an inner width of at least 10 mm (25/64 in).
- Customization: The wattage can be customized, but a minimum order quantity (MOQ) is required.
- Certified: cULus Listed
- Warranty: 5 Years
30-day money-back guarantee
Core, Single Color
Total Lead Time:
Express: 2–4 weeks
Standard: 6–10 weeks
Breakdown:
Lead time includes production (1–2 weeks) and shipping—choose Express/Air (1–2 weeks) or Standard/Ocean (4–8 weeks).
Free sea shipping (4–8 weeks) for orders over CAD $5,000; no minimum order quantity; shape, LED strip, and finish color can be customized (MOQ may apply—contact SuppLux for details).
Core—The perfect balance of quality and value.
Details
Product Specification
| Item | Description |
|---|---|
Power(W/m) | 5W (1.52W/ft)/10W (3.05W/ft)/15W (4.75W/ft) |
| Voltage(V) | DC24V |
Ambient Temperature | -25°C~+45°C |
| Storage Temperature | -25°C~+60°C |
| Max.run length(M) | 5m |
Product Photometrics
5W/m（1.52W/ft）
| CCT | lm/m | lm/ft |
|---|---|---|
 ±100 | 490 | 149.4 |
 ±150 | 545 | 166.1 |
 ±250 | 575 | 175.3 |
 ±300 | 595 | 181.3 |
10W/m（3.05W/ft）
| CCT | lm/m | lm/ft |
|---|---|---|
| ±100 | 980 | 298.8 |
| ±150 | 1090 | 332.2 |
| ±250 | 1150 | 350.5 |
 ±300 | 1190 | 362.6 |
15W/m（4.57W/ft）
| CCT | lm/m | lm/ft |
|---|---|---|
| ±100 | 1470 | 448.1 |
| ±150 | 1635 | 498.4 |
| ±250 | 1725 | 525.7 |
 ±300 | 1785 | 544.0 |
FreeCut Version
5W/m（1.52W/ft）
| CCT | lm/m | lm/ft |
|---|---|---|
| ±100 | 485.25 | 147.88 |
| ±150 | 561.65 | 171.18 |
| ±250 | 598.35 | 182.39 |
| ±300 | 608.10 | 185.38 |
10W/m（3.05W/ft）
| CCT | lm/m | lm/ft |
|---|---|---|
| ±100 | 1015.10 | 309.48 |
| ±150 | 1075.50 | 327.89 |
| ±250 | 1114.70 | 339.86 |
| ±300 | 1211.30 | 369.22 |
15W/m（4.57W/ft）
| CCT | lm/m | lm/ft |
|---|---|---|
| ±100 | 1461.45 | 445.50 |
| ±150 | 1498.50 | 456.81 |
| ±250 | 1692.60 | 515.83 |
| ±300 | 1769.10 | 539.34 |
Accessories (Included)
Name | Image | Description |
2PIN Lead Wire (4ft) |  | Red: V+ (Positive) Black: V- (Negative) |
Package |  | Bag and Roll |
Sticker |  | Stick-On |
Application Scenarios
Perfect for cabinets, shelves, showcases, cove lighting, retail displays, and modern residential interiors.
Single Color Core COB480SC8LY 8mm Spec Sheet
